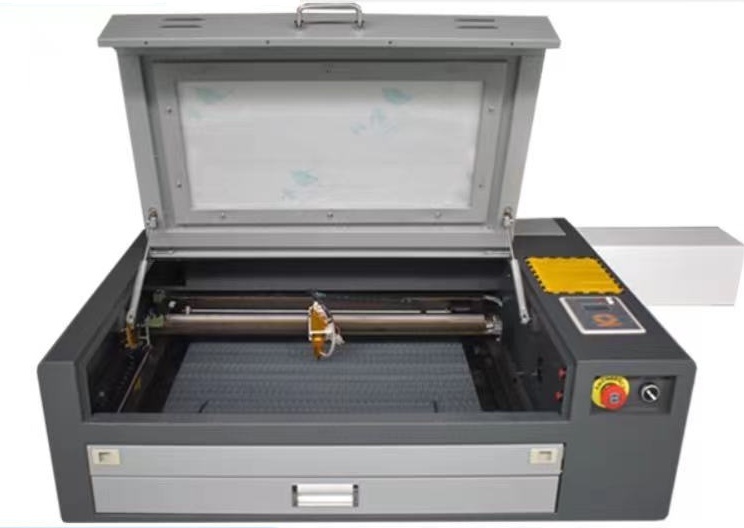

HQ3020


Technical Index:


Laser power: 40W (OPTIONAL)

Laser Type: CO2 Glass-tube laser

Power supply: AC220V +/- 10%/AC110V+/- 10%, 50Hz

Tube Trigger Volt: 20KV

Tube Operating Volt: 15KV

Current: 0~22MA

Max. Engraving size: 300*200mm

Engraving speed: 0~500mm/sec.

Cutting speed: 0~300mm/sec.

Platform:  lifting platform / fixed platform (up to 10 cm)

Laser Tube Life: 1000~1300 Hours

Min. cutting character: Letter: 1x1mm (0.04*0.04")

Operating Temperature: 5~35 degree Celsius

Machine Weight: 25kgs

Resolution Ratio: <1000dpi

Control Configuration: DSP

System Environment: WINDOWS2000/WINDOWS XP/Vista/Win7

Software Supported: MoshiDRAW software (Both NewlyDraw and NewSea fuction)

Type of Cooling: water-cooling and protection system

Graphic Format Supported: BMP/JPG/JPEG/WMF/EMF/PLT

Motor Type: Stepper Motor

Water-break protection: Yes

Gross Weight: 40 kgs

Machine Dimension: 900*500*250mm (35*20*10")

Packing: wooden box package

Packing Dimension: 970*670*470mm (38.2*26.3*18.5")



Applicable Materials:

Nonmetal materials: such as rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wood, marble, China, paper, garment, jade article, glass etc.




Applicable Industry:

Cutting, engraving, through-carved, hole drilling on wood and bamboo, acrylic, craft and gift, crystal, marble and granite, ceramic, glass and other

non-metal materials.

It is widely used in electronic, craft and gift, advertising industries.



Video:

https://youtu.be/QQO_wI0zvdE
