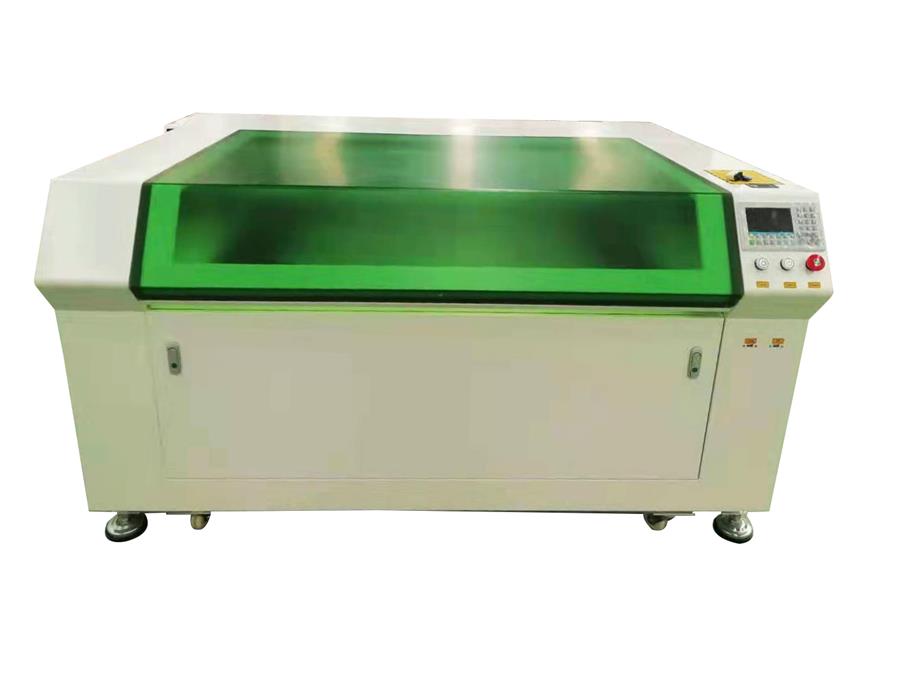

Technical Index:
Laser Style: CO2 Sealed-Off laser glass tube, water-cooled
Laser power: 100/130/150/180/200W
Engraving size: 1300*900mm
Engraving speed: 0-500mm/sec.
Cutting speed: 0-300mm/sec.
Positional Accuracy: <+/-0.01mm
Power supply: AC220V/50Hz, AC110V/60Hz
Total Power: <1200W
Operating temperature: 0-45 degree centigrate
Operating Moisture: 5-95%
Maximum engraving depth: 3.5mm
Minimum cutting character: English letter: 1.0 * 1.0mm
Available Figure Format: BMP, PLT, DST, DXF, AI
Supporting Software: CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving System: 2 phases stepper motor
Machine Dimension: 2180 * 1330 * 1130mm
Packing Dimension: 2280 * 1430 * 1230mm
Gross Weight: 290kg
Applicable Industry:
Cutting, engraving, through-carved, hole drilling on wood and bamboo, acrylic, craft and gift, garment and leather,
marble and granite, ceramic, glass and other non-metal materials.
Liaocheng Hongqiang Electronic Equipment Co., Ltd, as a professional manufacturer and exporter of CNC laser engraving and cutting machine, is dedicated to provide the best products and service to global customers on high standard on high precise material processing industry. SEE MORE
