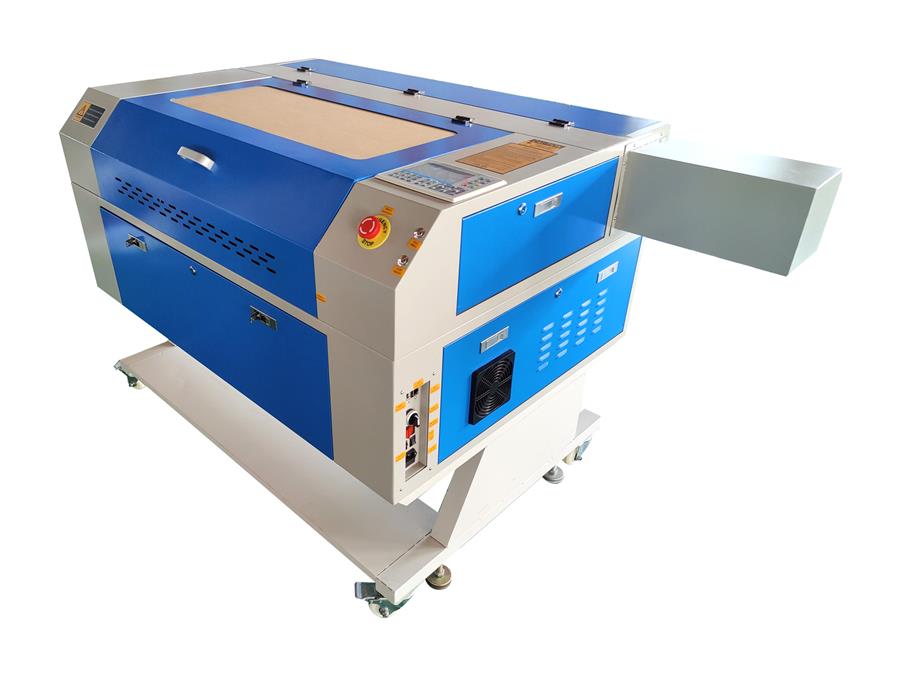

Technical Index:
Laser Type: CO2 Sealed-off laser glass tube, water-cooled
Laser Power: 60/80/100W
Max. cutting size: 700 * 500mm
Cutting speed: 0-500mm/sec.
Engraving speed: 0-3000mm/sec.
Min. cutting character: English letter: 1*1mm
Max. Scanning Accuracy: 2500DPI
Positioning Accuracy: <+/-0.01mm
Total power: <1200W
Supporting Figure Format: DST, PLT, BMP, DXF, AI.
Supporting Software: CORELDRAW, PHOTOSHOP, AUTOCAD, CAD, TAJIMA.
Color Separation: Yes
Driving System: 2 phases stepper motor
Machine Size: 1170*870*880mm
Packing Size and G.W.: 1270*970*1140mm/165KGS (60W)
Packing Size and G.W.: 1590*970*1140mm/185KGS (80W)
Packing Size and G.W.: 1790*970*1140mm/200KGS (100W)
Power Voltage: 220V, 50HZ/110V/60HZ
Gross Weight: 180 kgs.
Optional Parts: Up-down worktable, Rotary attachment, Autofocus.
Applicable industry:
Advertis singboard, arts & crafts, crystal, embossment technology, printing plate making, clothing & leather, embroidery engraving and cutting.
Applicable Materials:
Non-metal materials: such as rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wooden, marble, China, paper, garment, jade article, glass etc.
Video:
https://youtu.be/_AqJX0JAcDs (Operation Manual)
